Building Wall Construction Formwork Stucco Plaster Reinforcement Galvanized Rib Lath Expanded Sheet

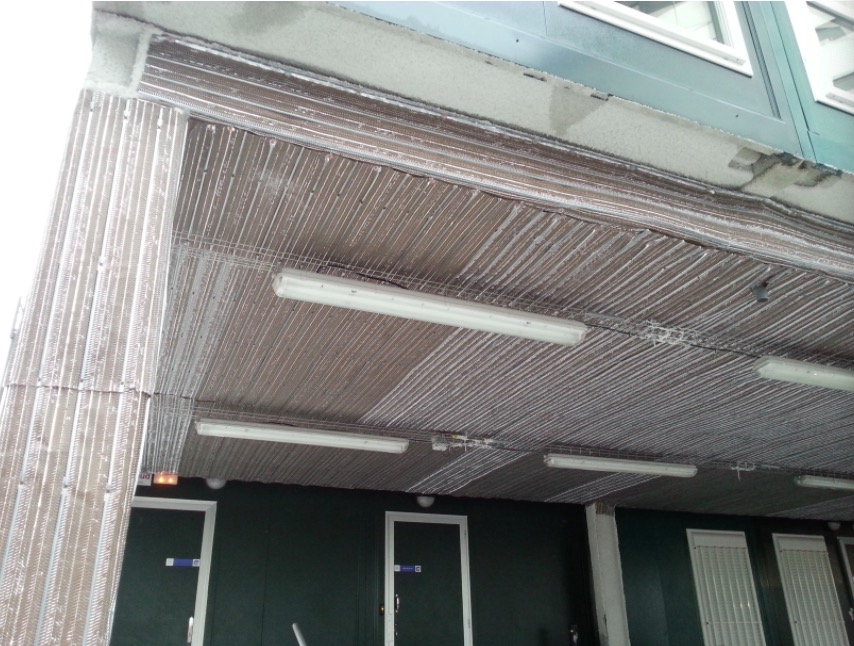

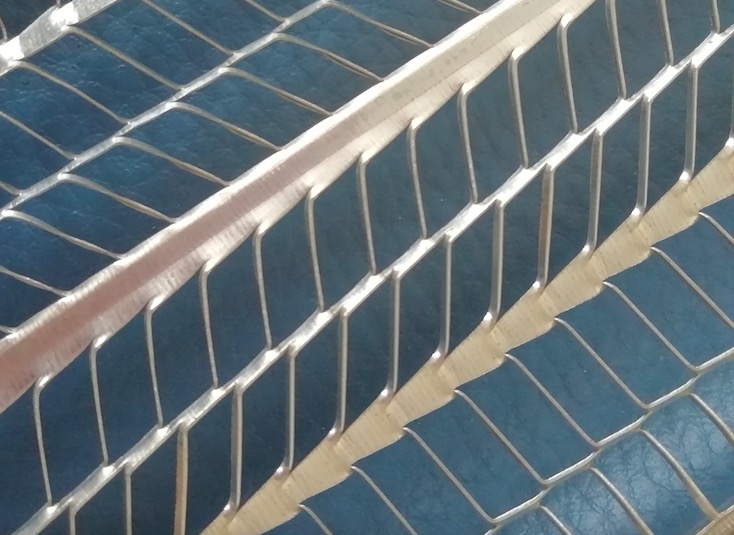

Rib Lath is made from galvanized metal sheet by perforation process and expanding process.It is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength, offering excellent plaster base and reinforcement for all types of walls, ceilings and fireproofing of steel beam, and columns. Rib Lath provides plaster & render backing and is also suitable for the refurbishing of damaged or deteriorated faces of masonry walls. Available in galvanised for internal use and stainless steel for external use.
Specification
Rib Lath
| Thickness(mm) | mesh(mm) | Rib height(mm) | Rib distance(mm) | kg/m² | Width of panel(mm) |
| 0.30 | 16X11 | 8 | 150 | 0.85 | 600 |
| 0.35 | 16X11 | 8 | 150 | 1.00 | 600 |
| 0.40 | 16X11 | 8 | 150 | 1.14 | 600 |
| Thickness(mm) | mesh(mm) | Rib height(mm) | Rib distance(mm) | kg/m² | Width of panel(mm) |
| 0.30 | 7X11 | 8 | 100 | 1.165 | 600 |
| 0.35 | 7X11 | 8 | 100 | 1.36 | 600 |
| 0.4 | 7X11 | 8 | 100 | 1.55 | 600 |
Package
With pallets, each pallet quantity according to request.
Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
All inquires will be replied within 8 hours
High Quality, Reasonable prices, prompt delivery, perfect after-sales services.
Quality Quarantee:
A. All goods strictly inspected during production.
B. All products must be checked strictly before packing.
C. Every consignment must be re-inspected before shipment.
D. You are more than welcomed to my factory to inspect the goods at any time. Payment made via TT, LC, Western Union or DP.
Shipment:
A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.
Product Tags:
|
|
Building Plaster Reinforcement Mesh Galvanized Hy Rib Formwork 0.5mm Thickness Images
|
